Door Power Window Regulator (Front) Explanation

FRONT DOOR POWER WINDOW REGULATOR REMOVAL
1. Remove the carrier plate. Refer to PLATE, CARRIER, REMOVAL

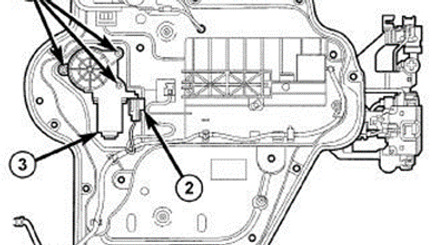

2. Remove the screws (Fig 2) #1 and disconnect the electrical connector #2.
3. Remove the motor (Fig 2) #3.
4. Remove the rail screws (Fig 3) #2 and separate the lift regulator #3 from the carrier plate #1.

FRONT DOOR POWER WINDOW REGULATOR INSTALLATION
1. Position the lift regulator (Fig 3) #3 onto the carrier plate #1 and install the screws #2.
2. Install the motor (Fig 2) #3 and the screws #1.
3. Connect the electrical connector (Fig 2) #2.
4. Install the carrier plate. Refer to PLATE, CARRIER, INSTALLATION
